FA117

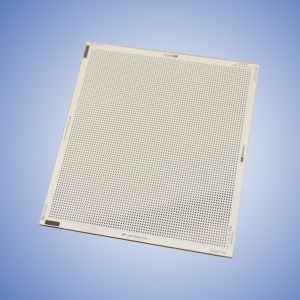

Dot Array 25mm x 25mm, .125mm Dots on .25mm Centers, Mylar

These precision Mylar Distortion Targets allow for the testing and qualification of machine vision systems. The pattern is formed in film emulsion on a .007” Mylar substrate. The pattern is positive (black dots on a diffuse white background). Targets are available in four different patterns and three substrate sizes to match the requirements of your application. These film targets have a feature-to-feature accuracy of .005mm. All targets are NIST traceable and individually serialized for compliance to MIL-STD-45662A. For higher accuracy, please see the Chrome-on-Glass version of this target.

• Dot diameter: .125mm
• Dot spacing: .25mm
• Overall Accuracy: ±0.025mm
• Substrate type: film on white mylar
• Substrate size: 2” x 2”
