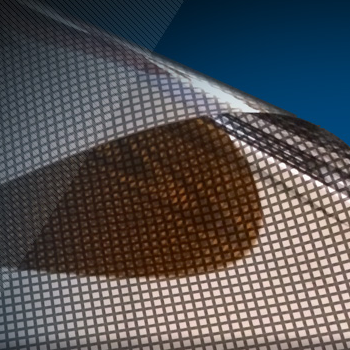

Two-sided Roll-to-roll Film Patterning

We have many tools available to apply precision patterns to both sides of long, flexible film.

Patterning abilities

  • Chemical etching
  • Laser ablation
  • Additive processes

Materials

  • Metalized films
  • Filled polymers (e.g. polyimide)
  • Inks

Capabilities

  • Up to 20” wide, depending on the process (Equipment scalable)
  • Any length (regularly process film over 36 feet long)
  • Can pattern both sides of the same film and align the pattern on opposite sides to within 0.003”
  • Line widths down to 5 microns (dependant on product size)
  • Tapers and detailed patterning available
