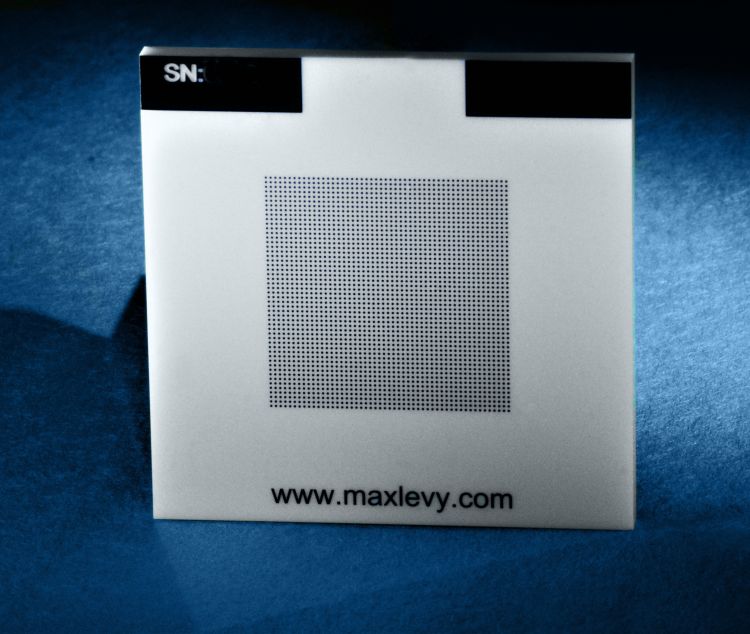

Dot Array 50mm x 50mm, .50mm Dots on 1.0mm Centers, White Glass
Stock No. FA141
Price: $752.00
About This Product
These ultra high precision Chrome on White Glass Distortion Targets offer unparalleled accuracy for use in qualifying imaging systems. Several variations of this target are available; all are fixed frequency dot arrays in a choice of five different dot spacings and four substrate sizes. With a feature-to-feature accuracy of 2 micron, these patterns allow for extremely accurate testing and qualification of inspection systems. All targets are NIST traceable and serialized. A glass version and a film version on white mylar is also available.Specifications
- Dot diameter: .50mm
- Dot spacing: 1.0mm
- Overall Accuracy: ±0.002mm
- Substrate type: Polished White glass
- Substrate size: 3” x 3”
The pattern is formed in durable double layer Chromium (OD > 3.0) on a stable 0.125” polished White glass substrate. The pattern is positive (opaque features on a bright background) on the first surface (Right Reading Looking At). All targets are given complete inspection to ensure the highest quality calibration artifact.
Please see the drawing below for complete specifications.
